A complete, self-contained medical solution, integrating a treatment area, an observation area and a bathroom for optimal patient care.

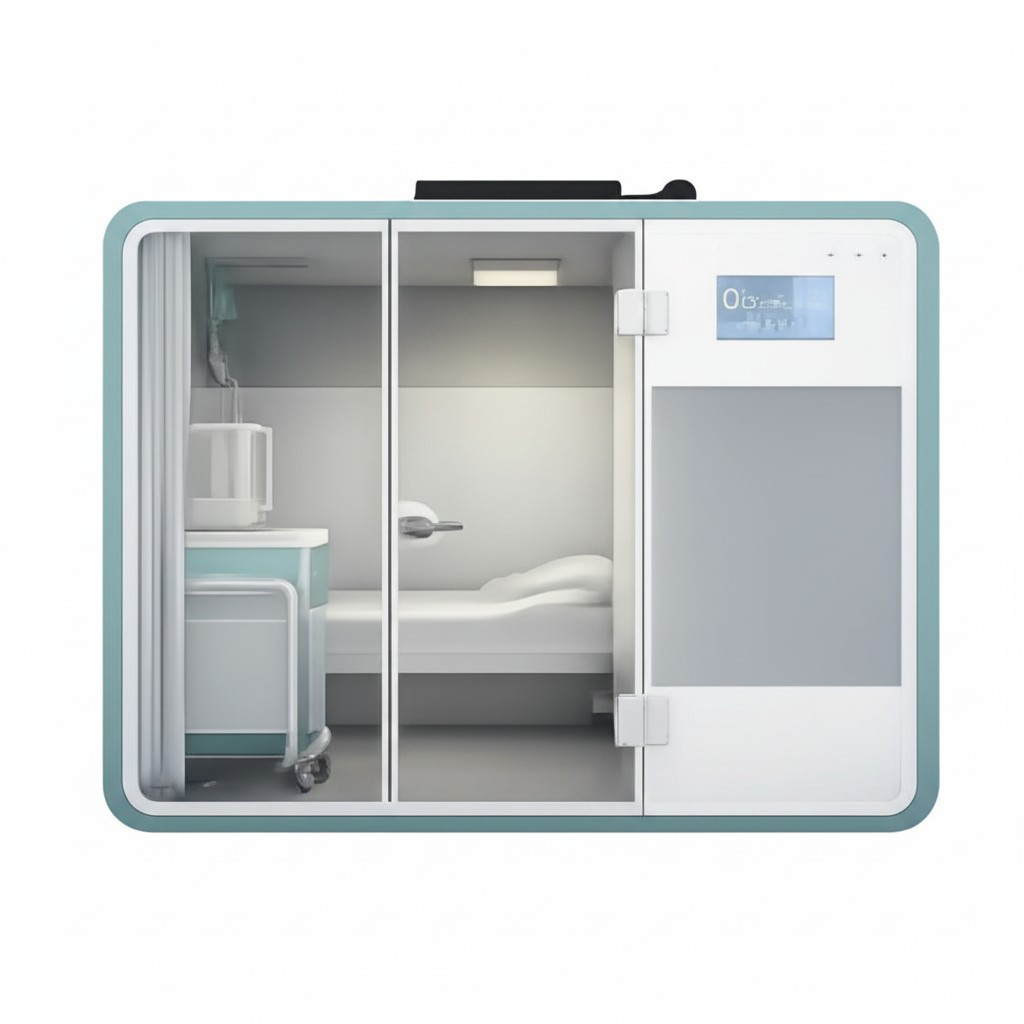

Medical Mobile
The mobile booth offers a fully self-contained medical environment, combining treatment and observation areas with an integrated bathroom. It allows for comprehensive patient care while ensuring a high level of comfort and safety, even in temporary or high-demand environments.
Advanced air treatment technology Equipped with a positive and negative pressure air handling system, the cabin ensures optimal air quality control. Three-stage electrostatic purification and ultraviolet disinfection effectively limit contaminants. The system also provides efficient air circulation and can be connected to the hospital's central air handling system.
Integrated UVC disinfection system
The booth is equipped with a UVC (270–280 nm) ultraviolet sterilization system, capable of destroying the nucleic acids (RNA) of microorganisms such as bacteria, viruses, and spores. This technology ensures a highly secure medical environment.
External dimensions Height: 2300 mm Width: 2400 mm Depth: 2136 mm
Internal dimensions Height: 2140 mm Width: 2240 mm Depth: 2100 mm
Weight 750 kg
100-240V / 50-60Hz and 12V-USB power supply
Central lighting with natural light 4000K / 150 lux
Positive pressure system with three-stage electrostatic purification
Negative pressure system with UV disinfection (180 nm)
Internal air circulation of 20T/h
Connection to the hospital's central air system is possible.
Emergency audio broadcasting and announcement terminal
Network TV access
Predisposition for smoke detectors and sprinklers
UVC disinfection system (270–280 nm)
The cabin incorporates a UVC (270–280 nm) ultraviolet sterilization system capable of destroying the nucleic acids (RNA) of microorganisms such as bacteria, viruses, and spores. This technology enables effective disinfection and enhances the overall safety of the medical environment.
900mm ABS steel bed without side rails
450mm ABS bedside table
Folding antibacterial curtain made of synthetic fibers
Ultra-thin 32" HD TV with network connection
15.5" Information Screen
Access to oxygen supply and negative pressure
Access to the hospital information system
Integrated bathroom in GRP
